Samsung PM9A3 7.68TB
7.68TB of enterprise NVMe in a single U.2 slot — PCIe Gen4 x4, up to 6,800MB/s reads and 4,100MB/s writes, 1.1M random read IOPS, 1 DWPD endurance. Maximum density per bay for capacity-hungry all-flash builds. SMART-verified and shipped from Hong Kong.
Fully Tested & Documented · Hong Kong Warehouse Stock · Worldwide Shipping 3–7 Days · 1-Year Warranty
Hardware Gallery
The PM9A3 7.68TB, Up Close

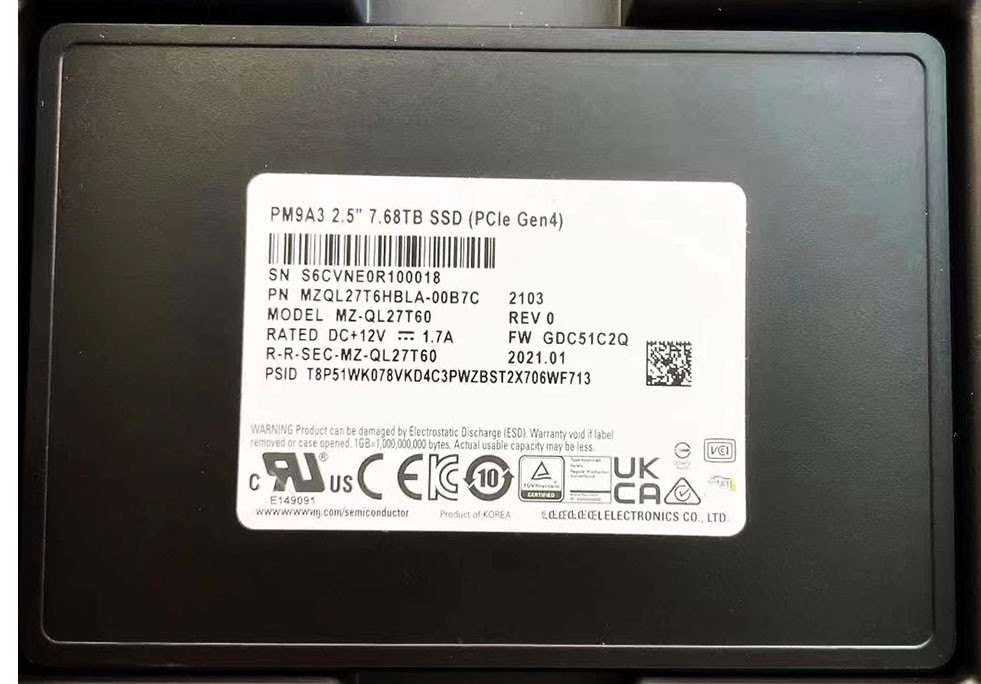

PM9A3 7.68TB — Label Verified
Actual unit photo: label reads PM9A3 2.5-inch 7.68TB SSD (PCIe Gen4), PN MZQL27T6HBLA-00B7C, Samsung V-NAND TLC. Every drive we ship is photographed and SMART-logged before packing.

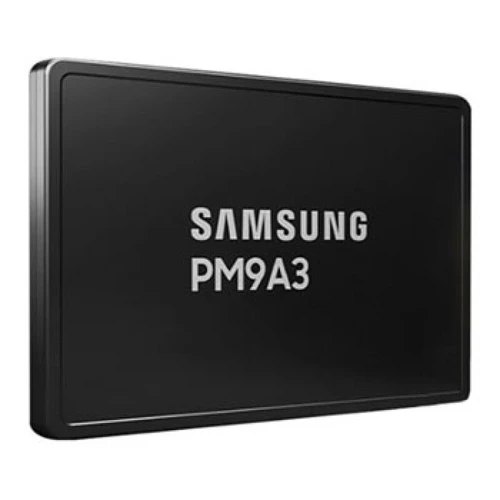

One Slot, 7.68TB
Standard 2.5-inch U.2 (SFF-8639) hot-swap form factor. A 24-bay 2U server fully populated with 7.68TB PM9A3 delivers 184TB raw of Gen4 NVMe — the densest configuration this family supports.
6,800
MB/s sequential read
4,100
MB/s sequential write
1.1M
IOPS random read (4KB)
1
DWPD, 5-year endurance class
Key Specifications
| Component | Specification |
|---|---|
| Model | Samsung PM9A3 7.68TB (MZQL27T6HBLA) |
| Form Factor | 2.5-inch U.2 (SFF-8639) |
| Interface | PCIe Gen4 x4, NVMe 1.4 |
| NAND / Controller | Samsung 128-layer V-NAND TLC / Elpis |
| Sequential R/W | Up to 6,800 / 4,100 MB/s |
| Random R/W (4KB) | Up to 1,100K / 200K IOPS |
| Endurance | 1 DWPD (approx. 14,016 TBW) |
| Security | AES 256-bit, TCG Opal, power-loss protection |
The 7.68TB is the density flagship of the PM9A3 U.2 line — the fastest writer in the family (4,100MB/s) and the maximum capacity short of the rare 15.36TB. Half-density alternative: the 3.84TB at better $/TB retail. All capacities rotate through our enterprise storage range. Background on drive classes in our NVMe vs SATA guide.
Transparent Pricing
2026 Reference Pricing by Configuration
Tracked Sep 1, 2026 — six asking-price data points spanning recertified and new Western retail channels. The new/recertified spread is unusually wide this cycle. Volume orders quote below asking.
Recertified / Channel Stock
$988–$1,188
Two data points tracked Sep 1, 2026: Avanti Global Resources $988 (recertified, 1-year warranty, 00B7C) and Senetic UK £935.86 (≈$1,188, 00W07 variant, not in stock). Recertified 7.68TB is the standout value of the entire PM9A3 family.
New Western Retail
$3,040–$4,600
Four data points: Senetic UK £2,393.88 excl. VAT (≈$3,040), comel-it.com $3,776 net, ServerSupply $4,180 (00A07) and $4,600 (00B7C). New retail carries a heavy premium this cycle — recertified or graded pulls are the rational buy.
Used Server Pulls
On Request
Graded pulls with full SMART readout (percentage life remaining, power-on hours, reallocated sectors). High-capacity pulls are scarce — we source against confirmed channel stock.
Asking prices, not transaction prices — volume deals typically close 5–15% below asking. Small sample per tier (n<5): indicative only. Sources: avantiglobalresources.com, senetic.co.uk, comel-it.com, serversupply.com. Collected Sep 1, 2026. Note: 00A07 / 00B7C / 00W07 are distinct OPN variants — confirm compatibility at inquiry. Full dataset: Used Server Price Index.
Origin
Hong Kong Warehouse
Free port — full export documentation
Transit
3–7 Days Air Freight
Tracked, insured, worldwide
Warranty
1-Year Warranty
Diagnostic report in every box
Quality Process
What We Test Before a PM9A3 7.68TB Ships
SMART Health Readout
Percentage Used, power-on hours, reallocated sectors, and media errors pulled from every drive — on a 14,016 TBW part, most decommissioned units retain the majority of rated life.
Full-Surface Write/Read Pass
All 7.68TB written and read back under NVMe stress at Gen4 x4 link speed — a multi-hour burn-in that catches weak NAND blocks SMART alone misses.
Firmware & Secure Erase
Firmware checked against Samsung's current release; drives sanitized to NIST 800-88 with certificate available on request.
Connector & Housing Inspection
SFF-8639 connector pins and housing inspected for wear — high-capacity drives see more hot-swap cycles in dense arrays, so connector condition matters.
PN Verification
Label PN (MZQL27T6HBLA) cross-checked against controller-reported model — relabeled drives are a known channel risk at this price point.
Report in the Box
Every unit ships with its per-machine diagnostic report and warranty. Full process: inspection guide.
Frequently Asked Questions
How much does a Samsung PM9A3 7.68TB cost in 2026?
The spread is wide: recertified units list at $988–$1,188, while new Western retail runs $3,040–$4,600 (six asking prices tracked Sep 1, 2026 — small samples, indicative only). Recertified with warranty is the standout value play of the PM9A3 family this cycle. Graded used pulls are quoted on request.
What is the difference between PM9A3 7.68TB and PM9A3 3.84TB?
Double the capacity per U.2 slot and the family's fastest write speed (4,100 vs 3,700 MB/s), with random reads up to 1.1M vs 1.0M IOPS. The trade-off is cost per TB: at retail the 3.84TB is cheaper per TB, but the 7.68TB halves slot count, cabling, and per-slot power for the same total capacity. For dense 2U all-flash builds, 24× 7.68TB delivers 184TB raw — the 3.84TB tops out at 92TB in the same chassis.
What do the 00A07, 00B7C, and 00W07 suffixes mean on MZQL27T6HBLA?
They are OPN variants of the same PM9A3 7.68TB platform — differences are in packaging, firmware channel, and regional distribution rather than core performance. All are U.2 PCIe Gen4 x4 1 DWPD drives. Compatibility is rarely an issue in standard server bays, but we confirm the exact OPN against your platform before quoting.
What condition are HKCHL PM9A3 drives in?
Recertified, new-sealed, and graded used pulls are all available depending on channel stock. Every non-new drive ships with its SMART readout (life remaining, power-on hours), a full-surface write/read pass result, NIST 800-88 sanitization on request, and 1-year warranty.
Can you ship PM9A3 7.68TB to the US, Europe, or Asia?
Yes — worldwide shipping from our Hong Kong warehouse with full export documentation; express air-freight typically arrives in 3–7 days to major markets. High-value drives ship with full insurance; for array builds we combine freight across capacities to reduce per-unit cost.
Get a Current PM9A3 7.68TB Quote
Tell us quantity and condition preference (recertified, new-sealed, or graded pull with SMART floor) — we confirm live stock and ship worldwide from Hong Kong, usually within one business day.
Request a Quote
