Lenovo ThinkSystem SR650 V2
Dual 3rd Gen Intel Xeon Scalable · 32 DDR4 DIMM slots · PCIe Gen4 · up to 40× 2.5" bays — the V2 generation brings Ice Lake and Gen4 to Lenovo's most-deployed 2U platform. Configured to order, shipped from Hong Kong.
Fully Tested & Documented · Hong Kong Warehouse Stock · Worldwide Shipping 3–7 Days · 1-Year Warranty
Hardware Gallery
The SR650 V2, Up Close

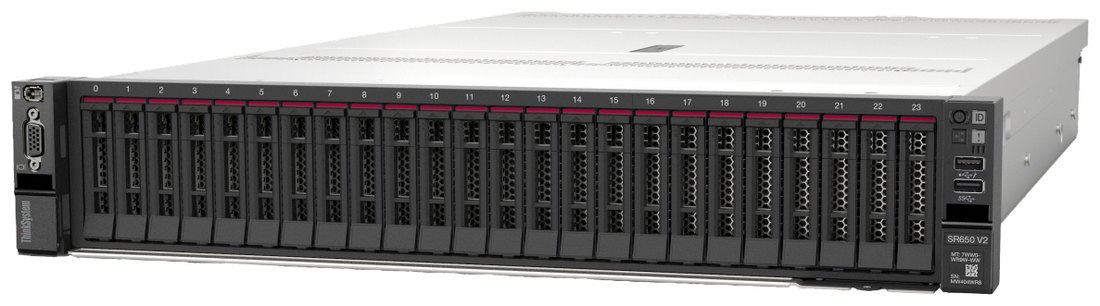

Front — Up to 40× Drive Bays
The SR650 V2 supports up to 40× 2.5" bays with a mid-plane expansion cage — among the highest bay density in a standard-depth 2U chassis. NVMe support across all bays with the right backplane configuration.

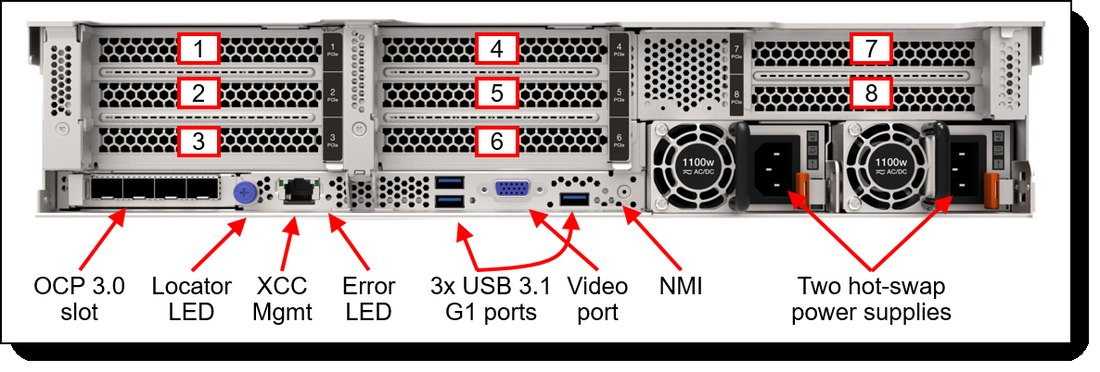

Rear — Gen4 Expansion & OCP 3.0
Up to 8× PCIe Gen4 slots, OCP 3.0 mezzanine for 10/25/100GbE, dual hot-plug PSUs up to 2400W, and XClarity Controller (XCC) management port. Lenovo's rear layout is clean and service-friendly.
80
cores max — 2× 3rd Gen Xeon Scalable
32
DDR4-3200 DIMM slots, up to 8TB
40×
2.5" bays with mid-plane expansion
8×
PCIe Gen4 expansion slots
Key Specifications
| Component | Specification |
|---|---|
| Form factor | 2U rack |
| Processors | 2× 3rd Gen Intel Xeon Scalable (Ice Lake), up to 40 cores each |
| Memory | 32× DDR4 DIMM slots, up to 8TB, 3200 MT/s (DCPMM supported) |
| Storage | Up to 40× 2.5" SAS/SATA/NVMe (with mid-plane expansion) |
| Expansion | Up to 8× PCIe Gen4 slots |
| Networking | OCP 3.0 mezzanine + PCIe NICs, up to 100GbE |
| Management | Lenovo XClarity Controller (XCC) Enterprise |
| Power | Redundant PSUs, 750W–2400W options |
The SR650 V2 is the 3rd Gen Xeon refresh of Lenovo's mainstream 2U platform — Ice Lake CPUs, PCIe Gen4, and the 40-bay mid-plane option make it a compelling alternative to the Dell PowerEdge R750. For the previous generation (2nd Gen Xeon, PCIe Gen3), see the SR650. For the compact 1U version, see the SR630.
Transparent Pricing
2026 Reference Pricing by Configuration
SR650 V2 supply is growing through 2026 as enterprise leases expire. We quote against live inventory — tell us your spec for a same-day response.
Bare Chassis
On Request
Chassis + motherboard + PSUs. Lenovo V2 off-lease supply is expanding — ask us for current availability.
Configured System
On Request
CPU + RAM + storage built to your spec. Typical lead time 3–5 working days.
High-Density Storage
On Request
40-bay mid-plane configuration for dense storage workloads. The SR650 V2's defining advantage over the R750.
SR650 V2 pricing quoted against live inventory as off-lease supply expands. Cross-shop with our Dell R750 and SR650 pages for same-generation alternatives.
Origin
Hong Kong Warehouse
Free port — full export documentation
Transit
3–7 Days Air Freight
Tracked, insured, worldwide
Warranty
1-Year Warranty
Diagnostic report in every box
Quality Process
What We Test Before an SR650 V2 Ships
XCC Event & Health Logs
Lenovo XClarity Controller logs reviewed for thermal events, DIMM errors, and PSU faults.
Full Memory Diagnostics
All 32 DIMM slots tested. Ice Lake memory controllers support eight channels — we verify every channel populates and runs at rated 3200 MT/s.
Mid-Plane & Drive Bay Check
If the 40-bay mid-plane is installed, all slots enumerated and link-trained. NVMe vs SAS/SATA per-slot confirmed.
Firmware Currency
XCC, UEFI, and backplane firmware updated to latest supported versions.
Physical Inspection
Mid-plane connectors, PCIe riser latches, and PSU cage — the SR650 V2's dense internal layout rewards careful inspection.
Report in the Box
Every unit ships with its per-machine diagnostic report and warranty. Full process: inspection guide.
Frequently Asked Questions
How much does a refurbished Lenovo ThinkSystem SR650 V2 cost?
SR650 V2 servers are quoted against live inventory — off-lease supply is expanding through 2026. For budget planning, expect pricing roughly in line with the Dell R750 (same 3rd Gen Xeon generation). Contact us for a current quote.
What is the difference between the SR650 V2 and the original SR650?
The V2 upgrades to 3rd Gen Intel Xeon Scalable (Ice Lake) and PCIe Gen4, doubling interconnect bandwidth. The original SR650 runs 1st/2nd Gen Xeon with PCIe Gen3. Both have 32 DIMM slots, but the V2 supports faster 3200 MT/s memory and 8-channel memory controllers per CPU.
How does the SR650 V2 compare to the Dell PowerEdge R750?
Both are 3rd Gen Xeon (Ice Lake), 2U, 32 DIMM slots, PCIe Gen4. The SR650 V2's key advantage is the 40-bay mid-plane configuration — 16 more drive bays than the R750's maximum. For standard configurations they're equivalent; for dense storage, the SR650 V2 pulls ahead.
What condition are your refurbished SR650 V2 servers in?
Every SR650 V2 passes documented per-unit diagnostics — XCC log review, full 32-slot memory testing at 3200 MT/s, drive bay and mid-plane enumeration, firmware updates, and physical inspection — and ships with the report and warranty.
Can you ship SR650 V2 servers internationally?
Yes. We ship worldwide from our Hong Kong warehouse with full export documentation; typical air-freight transit is 3–7 days to major markets.
Get a Current SR650 V2 Quote
Tell us your spec — CPU, memory, storage capacity, and whether you need the 40-bay mid-plane — and we reply with live availability and pricing, usually same business day.
