Huawei FusionServer RH2288 V3
Dual Xeon E5-2600 v3/v4 · 24 DDR4 DIMM slots · up to 12× 3.5" or 25× 2.5" bays — the predecessor to the 2288H V5, with multi-region APAC supply from $600. Fully tested, shipped worldwide from Hong Kong.
Fully Tested & Documented · Hong Kong Warehouse Stock · Worldwide Shipping 3–7 Days · 1-Year Warranty
Hardware Gallery
The RH2288 V3, Up Close

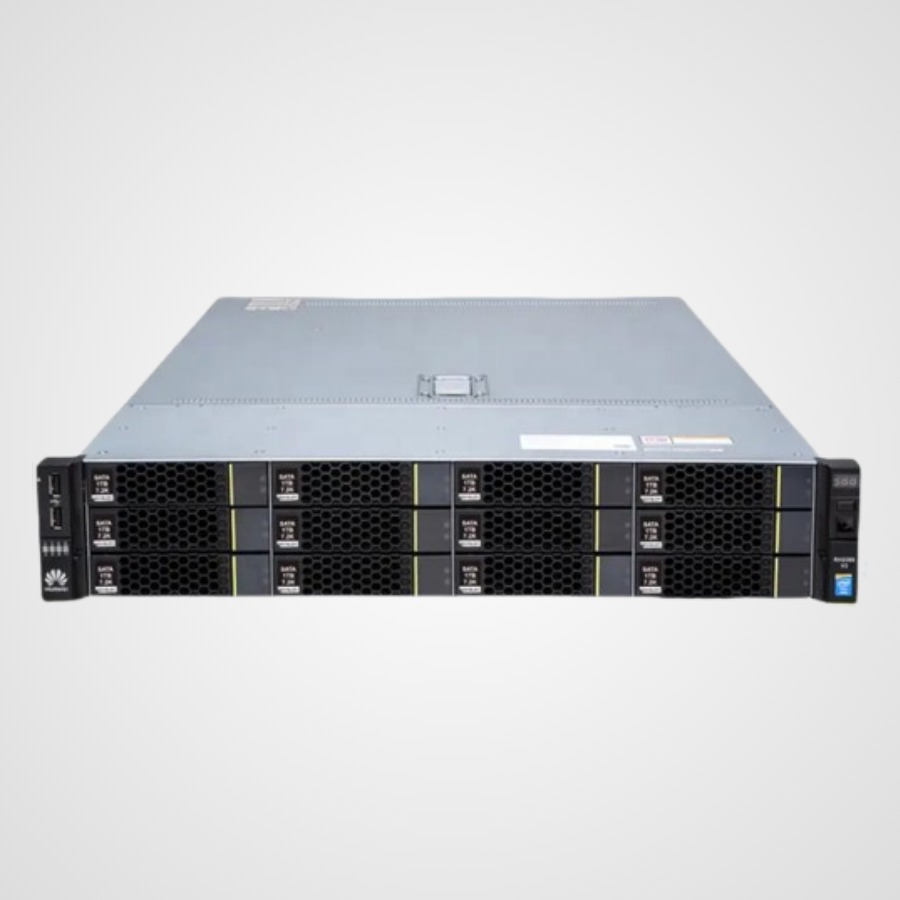

Front — Proven APAC Workhorse
Up to 12× 3.5" LFF or 25× 2.5" SFF hot-swap bays. The V3 generation is the most widely deployed Huawei server in APAC data centers — off-lease supply covers China, India, and Southeast Asia.

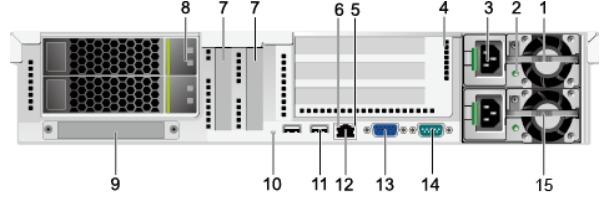

Rear — Enterprise I/O & iBMC
Up to 7× PCIe Gen3 slots, Huawei FlexIO mezzanine for 10GbE, dual hot-plug PSUs up to 1200W, and iBMC management. The RH2288 V3's rear layout is shared with the V5 generation — same service familiarity.
44
cores max — 2× Xeon E5-2600 v4
24
DDR4-2400 DIMM slots, up to 1.5TB
25×
SFF front bays or 12× LFF
7×
PCIe Gen3 expansion slots
Key Specifications
| Component | Specification |
|---|---|
| Form factor | 2U rack |
| Processors | 2× Intel Xeon E5-2600 v3/v4 (Haswell/Broadwell), up to 22 cores each |
| Memory | 24× DDR4 DIMM slots, up to 1.5TB LRDIMM, 2400 MT/s |
| Storage | Up to 12× 3.5" LFF or 25× 2.5" SFF hot-swap bays |
| Expansion | Up to 7× PCIe Gen3 slots |
| Networking | FlexIO mezzanine + PCIe NICs, 1/10GbE options |
| Management | Huawei iBMC |
| Power | Redundant PSUs, 750W–1200W options |
The RH2288 V3 is the previous generation of the 2288H V5 — same form factor, same 24 DIMM slots, but on the E5-2600 v3/v4 (Haswell/Broadwell) platform instead of Xeon Scalable. The V3 is widely deployed across APAC data centers, giving it the deepest off-lease supply of any Huawei server. For buyers who need E5-2600 v4 compatibility or want the lowest $/core in the Huawei ecosystem, the V3 is the value pick.
Transparent Pricing
2026 Reference Pricing by Configuration
Multi-region asking ranges tracked August 2026. V3 supply is the deepest in the Huawei refurbished ecosystem — pricing spans India, China, and Southeast Asia channels.
Bare Chassis
$600–$900
Chassis + motherboard + PSUs. APAC pricing is highly competitive — the V3 is one of the most affordable 2U chassis available today.
Sweet-Spot Config
$900–$1,500
Dual E5-2650 v4 / 2680 v4, 32–128GB RAM, basic storage. The range most APAC buyers target.
High Spec
$1,500–$2,200
Dual E5-2690 v4, 256GB+ RAM, full drive population. Storage servers and dense VM hosts.
Asking prices, not transaction prices. Sources: ServerBasket (India), IndiaMART, eBay (APAC), regional refurbishers. Cross-shop with the 2288H V5 for Xeon Scalable generation pricing.
Origin
Hong Kong Warehouse
Free port — full export documentation
Transit
3–7 Days Air Freight
Tracked, insured, worldwide
Warranty
1-Year Warranty
Diagnostic report in every box
Quality Process
What We Test Before an RH2288 V3 Ships
iBMC Health & Event Logs
Huawei iBMC captures thermal events, DIMM errors, and PSU faults. Full log review before anything else.
Full Memory Diagnostics
All 24 DIMM slots tested. Same Intel memory controller architecture as Dell/HPE equivalents.
Backplane & Drive Bay Enumeration
All drive bays enumerated; SMART on all included drives; 25-bay SFF expansion tray verified if installed.
Firmware Currency
iBMC, BIOS, and backplane firmware updated to latest supported versions.
Physical Inspection
Riser latches, fan modules, expansion tray connectors — V3 de-racking wear concentrated in the same areas as V5.
Report in the Box
Every unit ships with its per-machine diagnostic report and warranty. Full process: inspection guide.
Frequently Asked Questions
How much does a refurbished Huawei RH2288 V3 cost?
Bare chassis $600–$900, configured systems $900–$1,500, high-spec builds up to $2,200 (August 2026 snapshot). APAC supply is deep — the V3 is one of the most affordable 2U platforms available.
What is the difference between the RH2288 V3 and the 2288H V5?
The V3 runs Xeon E5-2600 v3/v4 (Haswell/Broadwell) with DDR4-2400; the 2288H V5 moves to 1st/2nd Gen Xeon Scalable with DDR4-2933 and more PCIe slots. Same chassis form factor, same brand ecosystem — the V3 is the budget pick, the V5 is the performance pick.
Is the RH2288 V3 still supported with firmware?
Firmware updates are available through Huawei's enterprise support portal. We update iBMC, BIOS, and backplane firmware before shipment. Contact us if you need ongoing firmware access in your region.
What condition are your refurbished RH2288 V3 servers in?
Every RH2288 V3 passes documented per-unit diagnostics and ships with the report and 1-year warranty.
Can you ship RH2288 V3 servers internationally?
Yes. Worldwide shipping from Hong Kong with full export documentation. Our location gives direct access to APAC supply chains for Huawei hardware.
Get a Current RH2288 V3 Quote
Tell us your workload and configuration preference — and we'll reply with availability and pricing from APAC supply channels, usually within one business day.
Request a Quote
